Executive Summary
Copper ore runs hard, high in silica, and very abrasive. The crushing stage must step the run-of-mine rock down to plant feed size while keeping a cubic shape and limiting fines. This article starts with laminated crushing, then breaks down eight components - crushing chamber, eccentric shaft, flywheel, toggle plate, CSS, hydraulics, drive, and lubrication - so plant engineers can see how a copper ore crusher actually bites rock. Vanguard Machinery cone crushers use a laminated chamber where the material bed crushes itself, giving a cleaner particle shape.

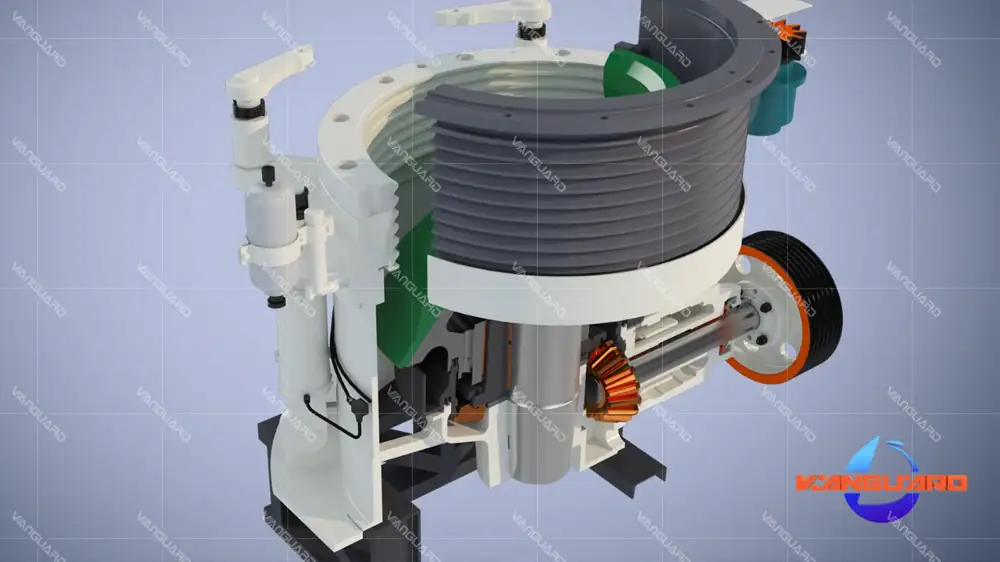

Laminated Crushing Principle
Single-particle crushing lets the mantle hit one rock at a point; stress concentrates, fines spike, and shape suffers. Laminated (particle-bed) crushing keeps the chamber full so the mantle squeezes the whole bed; particles crush each other. Result: more cubes, fewer flakes, even liner wear, and lower energy per ton. On abrasive copper ore, lamination extends liner life noticeably.

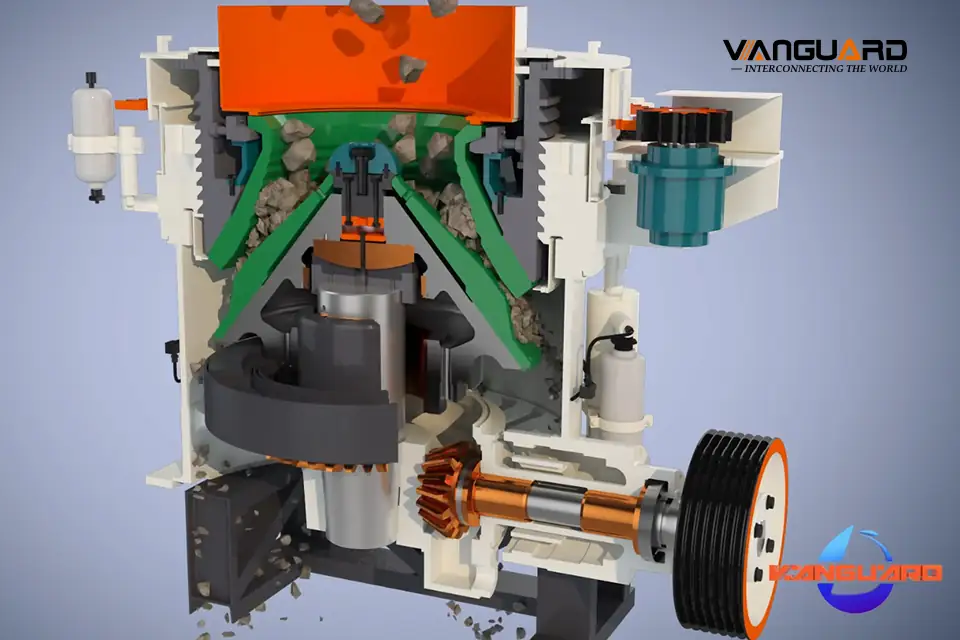

Crushing Chamber Design
The chamber is the narrowing space between the moving mantle and the fixed concave. Two parameters matter: - Nip angle: the angle between mantle and concave faces. Too wide and rock springs out; too narrow and throughput drops. - Chamber profile: modern curves widen at the top to grab the feed and narrow at the bottom to control the product, preventing bridging. Liner cross-section sets the material fall rhythm; wrong profile drops both yield and shape.
Eccentric Shaft and Main Shaft
In a cone, the main shaft carries the mantle. The eccentric sleeve spins and the mantle centerline swings around the shaft centerline - that swing is the gyratory motion. The swing width is the throw: more throw means stronger break and coarser product; less throw means finer. Eccentric angle plus speed set how many bites happen each second. In a jaw, the eccentric shaft drives the pitman, which pushes the toggle to swing the moving jaw.
Flywheel
The jaw flywheel stores energy. Crushing is an impact load, so motor torque swings hard. The flywheel banks energy on the light half-turn and releases it on the bite, flattening the load so a big rock will not trip the breaker. Cone units use a heavy pulley and hydraulic balance for the same effect.
Toggle Plate
The toggle is the jaw's fuse. It turns shaft rotation into jaw reciprocation, and - more important - when tramp iron (a bar, a bit) enters the chamber, the toggle breaks first and shields the shaft and bearings. So the toggle is both a wear part and a safety part; keeping one or two in the storeroom is standard practice.
CSS Setting
CSS (Closed Side Setting) is the narrowest gap between mantle and concave; it sets the top size of the product. Tighten CSS and the product gets finer but yield drops and liners wear faster; open it and the opposite happens. Modern units adjust hydraulically or with shims and show a reading, so operators fine-tune on the fly and hold the gradation.
Hydraulic System
Hydraulics do four jobs on a copper ore crusher: - Overload protection: tramp iron spikes oil pressure; an accumulator releases, the mantle yields, the iron passes, then it resets. - Chamber clearing: on jam, reverse pressure lifts the mantle and dumps the load. - CSS change: cylinders raise or lower the shaft to open or close the gap. - Lock: during run, hydraulics lock the mantle in place so it cannot drift. Dirty oil sticks valves, so change filters and oil samples on schedule.
Drive System
The motor sends power through a V-belt and pulley to the pinion; the pinion turns the eccentric's ring gear and the mantle gyrates. A loose belt slips and loses speed; an over-tight belt burns bearings - tension to the maker's mark. Coupling and bearing-housing hold-down bolts also need regular torque; copper ore vibrates hard, and one loose bolt can start a chain of failures.
When mounted on a crawler chassis, the whole unit walks on its tracks between sites and needs no concrete foundation.

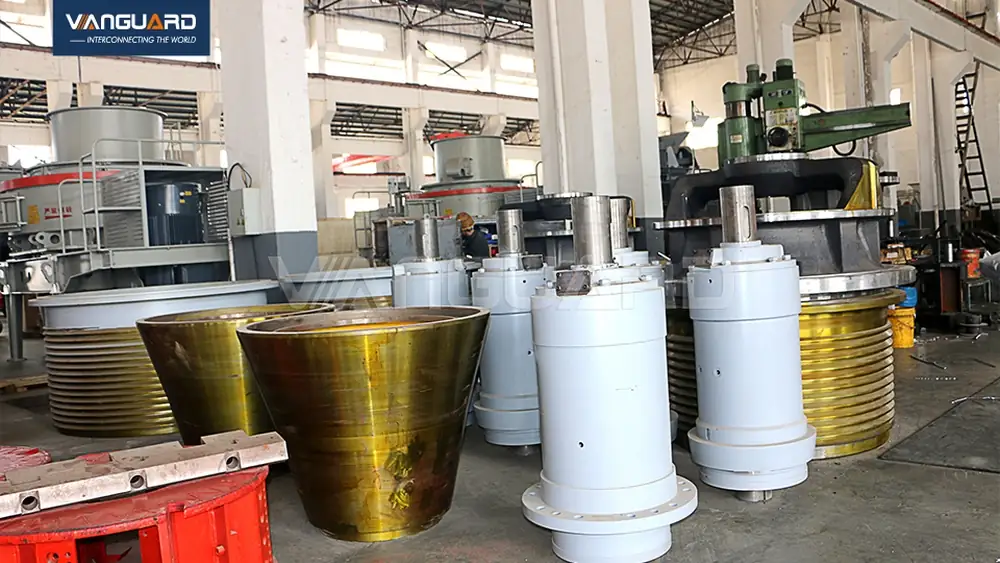

Lubrication System
Gears, bearings, and the eccentric sleeve all rely on the oil station: circulating oil carries away heat and flushes metal particles. Key points: - Oil temperature: too low and viscosity stalls the pump; too high and the film thins - stay in the window. - Oil flow: a low-flow alarm means a clogged filter or pump fault. - Oil quality: sample regularly for water, dirt, and acid. - Grease: pinion and bearing points get grease on a schedule. A leaking seal left alone lets water in once, and that is enough to ruin a bearing.
Main Components and Functions
| Component | Role | Maintenance focus |
| Chamber / liners | Grip and squeeze material | Wear monitoring, profile match |
| Eccentric shaft / sleeve | Create gyratory motion | Lubrication, bearing temperature |
| Flywheel | Smooth load swings | Keyway, balance weights tight |
| Toggle plate | Transmit force + overload protection | Spare on hand, break warning |
| Hydraulics | Protect / clear / set gap | Oil quality, filter, seals |
| Drive | Deliver power | Belt tension, hold-down bolts |
| Lubrication | Reduce wear, cool, clean | Oil temp, flow, samples |
Liner Life Reference
| Ore characteristic | Liner suggestion | Relative life |
| Medium hard, low silica | Standard manganese | Long |
| High silica, abrasive | Alloy-reinforced / curved liner | Medium |
| Clayey, wet, sticky | Wide anti-bridging liner | Medium-Long (less bridging) |
Lubrication Points
| Point | Method | Interval / oil |
| Main shaft bearing | Circulating oil | Continuous, ISO VG grade |
| Eccentric gear | Oil spray | Continuous |
| Pinion bearing | Grease | By run-hours |
| Adjustment cylinder pin | Grease | Monthly |
FAQ
Lamination lets particles crush each other - better shape, fewer fines. Single-particle crushing drives up fines and flakes.
Too wide and rock bounces out, so yield stalls and bridging grows.
Break force grows and product coarsens while liners wear faster; match it to feed size.
Load stays rough, motor current swings hard, and big rocks trip or burn the motor.
It transmits force and acts as a fuse; on tramp iron it breaks first to save the host, so keep spares.
Tight CSS gives fine product but low yield and fast wear; wide CSS raises yield and coarsens product - set by plant feed need.
Pressure spikes, the accumulator releases, the mantle yields, the iron passes, then it resets.
On jam or stall, reverse pressure lifts the mantle and dumps the load - do not force a restart.
Loose slips and loses speed; tight burns bearings - both cut yield directly.
Likely low flow, clogged filter, or heavy load - check flow and filter first.
Bearings run dry and heat; severe cases burn them. Grease on schedule.
Liner wear, bearing temperature, oil flow and quality, belt tension, hold-down bolts - these five, every shift.
