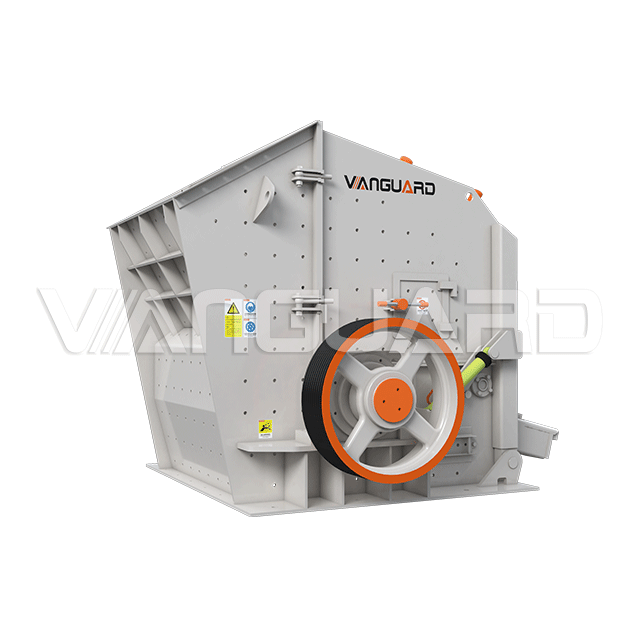

PF/PFV Series Impact Crusher
Capacity:15-350t/h
Feed size:0-700mm
Application:Hydropower, highway, artificial aggregate, ore crushing and other industries.
Overview
Dealing with the material with the side length below 500mm, not more than 250MPa anti-pressure strength, Impact crusher can be widely used in crushing the coarse, medium, and fine material(E.g. granite, limestone, concrete). During the process of operating, the rotor at high speed will be brought along by the electric motor. The material will be impacted by the Flat Hammer to be crushed, and then be countered to the liner for the second crushing, then be discharged through the discharge opening.
Features
High Chromium Plate Hammer
Keyless connection makes maintenance easier and economical; machine has strong shock resistance and abrasion resistance and strong impact.
Feed Port
Big feed port, high crushing cavity, high resistance againest material, less stone powder generated.
Hydraulic Push Rod
All function of crushing, high capacity, machine element gets less abrasion, high comprehensive benefits.
Rotor
Compact structure, strong rigidity, high rotational inertia of rotor.
Specifications - Technical Data
|
Model |
Specification |
Feeding Port Size (mm) |
Max. Processing Size (mm) |
Capacity (t/h) |
Modelof Motor |
Power(kW) |
|
PF-1007 |
φ1000×700 |
400×730 |
250 |
15-60 |
Y250M-6 |
37 |
|
PF-1010 |
φ1000×1050 |
400×1080 |
300 |
50-90 |
Y315S-6 |
75 |
|
PF-1210 |
φ1250×1050 |
400×1080 |
300 |
70-130 |
Y315L1-6 |
110 |
|
PF-1212 |
φ1250×1200 |
400×1250 |
300 |
70-140 |
Y315L2-6 |
132 |
|
PF-1214 |
φ1250×1400 |
400×1430 |
300 |
90-180 |
Y315L2-6 |
132 |
|
PF-1315 |
φ1300×1500 |
680×1520 |
350 |
120-250 |
Y2-355M2-6 |
200 |
|
PF-1320 |
φ1300×2000 |
680×1570 |
500 |
160-350 |
Y2-355M2-6 |
280 |
|
PFV-1010 |
φ1000×1050 |
400×1030 |
200 |
35-60 |
Y315S-6 |
75 |
|
PFV-1210 |
φ1250×1050 |
430×1090 |
250 |
70-140 |
Y315L1-6 |
110 |
|
PFV-1214 |
φ1250×1400 |
430×1440 |
250 |
90-190 |
Y315L2-6 |
160 |
|
PFV-1315 |
φ1300×1500 |
970×1530 |
300 |
150-280 |
Y2-355M2-6 |
200 |
|
PFV-1320 |
φ1300×2000 |
970×2030 |
500 |
250-350 |
Y2-355M2-6 |
250 |
|
PFV-1520 |
φ1500×2000 |
700×2060 |
700 |
200-550 |
Y2-355M2-6 |
200×2 |
|
PFV-1620 |
φ1600×2000 |
990×2040 |
700 |
300-700 |
Y2-355M2-6 |
250×2 |
|
PFV-1822 |
φ1800×2200 |
1260×2250 |
800 |
300-1000 |
Y2-355M2-6 |
355×2 |
