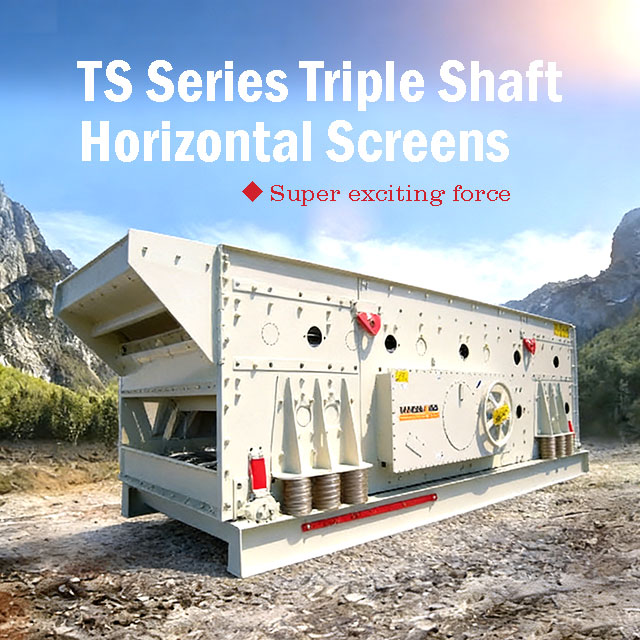

TS Series Triple Shaft Horizontal Screens
Capacity:280-1000t/h
Feed size:0-250mm
Application:Product classification in mining, building materials, transportation, energy, chemical industry and other industries
Overview
The Triple Shaft Horizontal Screens is developed by absorbing the same type of vibratingscreen technology at home and abroad.Due to its horizontal installation and small site space, itis widely used in metallurgy, building moterials,transportation and other industries.It is suitable for coarse-grained screening, fine screening of naturalaggregate and crushed aggregate.It has the choracteristics of good screening permeability,large processing capacity and small installation height. Ilt is an ideal equipment for all kindis ofmines,quarries and mobile screening stations.
Features
High-Efficiency Screening
The three-axis elliptical trajectory combines superior material dispersion with rapid conveyance, offering high permeability and anti-blinding performance that significantly boosts capacity and efficiency for difficult-to-screen materials.
Easy Installation
The horizontal design drastically reduces installation height, making it ideal for mobile plants and space-constrained sites. Its compact structure facilitates transport, while intelligent lubrication simplifies maintenance.
Stable & Eco-Friendly Operation
Ensures smooth, low-noise operation with minimal foundation impact. Adjustable parameters adapt to various conditions, and the sealed design effectively suppresses dust for a greener workflow.
Wide Applicability
Suitable for diverse industries including metallurgy, mining, coal, and chemicals, serving as an ideal replacement for large-scale and imported high-end screening equipment.
Specifications - Technical Data
| Model | Rotating Speed (r/min) | Screen Layers | Screen Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
| TS2YK1860 |
730-850 (Speed is adjustable) |
2 | 1800×6100 | 250 | 280-550 | 22 |
| TS3YK1860 |
730-850 (Speed is adjustable) |
3 | 1800×6100 | 250 | 280-550 | 30 |
| TS4YK1860 |
730-850 (Speed is adjustable) |
4 | 1800×6100 | 250 | 280-550 | 30 |
| TS2YK2060 |
730-850 (Speed is adjustable) |
2 | 1930×6100 | 250 | 350-800 | 30 |
| TS3YK2060 |
730-850 (Speed is adjustable) |
3 | 1930×6100 | 250 | 350-800 | 37 |
| TS4YK2060 |
730-850 (Speed is adjustable) |
4 | 1930×6100 | 250 | 350-800 | 37 |
| TS2YK2460 |
730-850 (Speed is adjustable) |
2 | 2400×6100 | 250 | 450-1000 | 37 |
| TS3YK2460 |
730-850 (Speed is adjustable) |
3 | 2400×6100 | 250 | 450-1000 | 45 |
| TS4YK2460 |
730-850 (Speed is adjustable) |
4 | 2400×6100 | 250 | 450-1000 | 45 |
