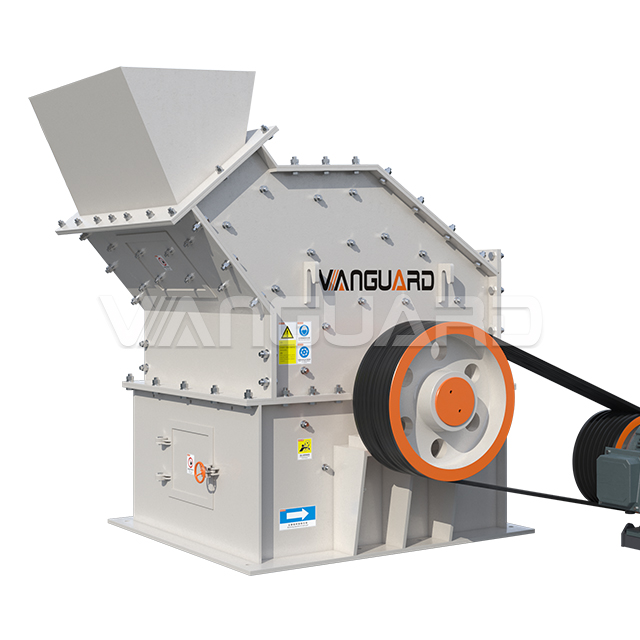

PXJ fine crusher
PXJ fine crusher

PXJ fine crusher

Capacity:20-300t/h

Feed size:<5mm

Application:

Get a quote info@vanguardtec.com

Overview

This series of fine crushers have stable and reliable operating performance simplified process simple structure and convenient maintenance. Large production capacity and long service life of the hammer head. It is widely used for the fine crushing of various minerals such as granite basalt limestone and river pebble.

Features

High productivity

The equipment has strong production capacity energy saving and high production efficiency compared with traditional fine crusher;

High recovery rate

The operating performance of the equipment is stable and reliable the process is simplified and the structure is simple and reasonable;

Stable and reliable

The equipment has high operation rate fast operation speed low power consumption and obvious advantages of power saving and consumption reduction;

Energy saving

The equipment can control the discharge granularity and the performance is stable to meet the multiple production requirements of customers;

Specifications - Technical Data

Model Input Opening Size(mm) Feeding Size(mm) Output Size(mm) Adjustment Range of Discharging(mm) Capacity(t/h)  Power(kw)
PXJ800*400  400*185 < 120 <5 5-20 20-30 37
PXJ800*600 500*250 <180 <5 5-20 35-40 37
PXJ800*800 550*330 <180 <5 5-20 35-45 45
PXJ1010*1010 1000*350 <180 <5 5-20 45-55 75
PXJ1010*1012 1200*400 <180 <5 5-20 80-110 90
PXJ1200*1200 1200*450 <180 <5 5-20 100-110 132
PXJ1400*1400 1500*500 <190 <5 5-20 100-150 160
PXJ1600*1600 1600*550 <190 <5 5-20 170-210 200
PXJ1800*1800 1800*800 <190 <5 5-20 250-300 315

Solution

INFO REQUEST

Thank you for your interest in Vanguard Machinery. If you want to know more about our crushers and industrial grinding equipment.
Contact us now to find out what we can do for you!

  • *
  • *
