Water washing machinery technology, s

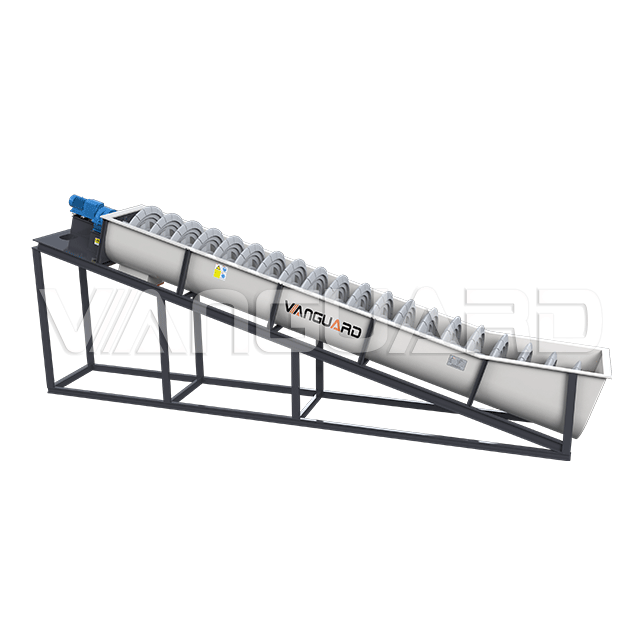

LSX Series Sand Washer

Capacity:100-350T/H

Feed size:≤10mm

Application:Washing and Selection of Construction Sites, Sand and Stone Works, Concrete Dam Sites of Hydropower Stations, Metallurgy, Building Materials, Hydropower and other Industries

Get a quote info@vanguardtec.com

Overview

LSX Series Sand Washing Machine can clean and separate stone powder and clay in sand and stone. Its novel sealing structure and reliable transmission device ensure the effect of cleaning and dewatering. It is an efficient sand washing equipment used with sand making machine. LSX series sand washing machine has two kinds of single-spin and double-spin, with high cleanliness, reasonable structure, large capacity, low power consumption, sand loss in the process of sand washing, especially the drive parts of sand washing machine are separated from water and sand, so its failure rate is much lower than the commonly used sand washing machine, is the best choice for upgrading the sand washing industry.

Features

Helical Blade

This series of product can clean and separate mud and impurities from gravel,which is applied in sand using units such as roads,water conservancy,construction,etc.Cleaning and dehydration are completed well by novel sealing structure, adjustable weir plate,and reliable transmission device.

Transmission Device

Reliable transmission device makes sure the cleaning effect.

Energy-Efficient

Greater capacity, smaller power consumption ,easier operation and maintenance and high efficiency.

Less Investment and High Benefit

Lower price than other series sand washing machine with the same capacity.

Specifications - Technical Data

Model LSX920 2LSX920 LSX1120 2LSX1120
Diameter (mm) 915 1115 1115 1115
Length (mm) 7585 7585 9782 9782
Feed size (mm) ≤10 ≤10 ≤10 ≤10
Capacity (t/h) 100 200 175 350
Speed (r/min) 21 21 17 17
Power (kW) 11 11*2 15 15*2
Water (t/h) 10-80 20-160 20-150 40-300
Outer Dimension(mm) 8420*2810*3960 8420*3765*3960 10970*3945*4720 10970*5250*4720
Weight (t) 6.3 11.1 10.2 17.9
